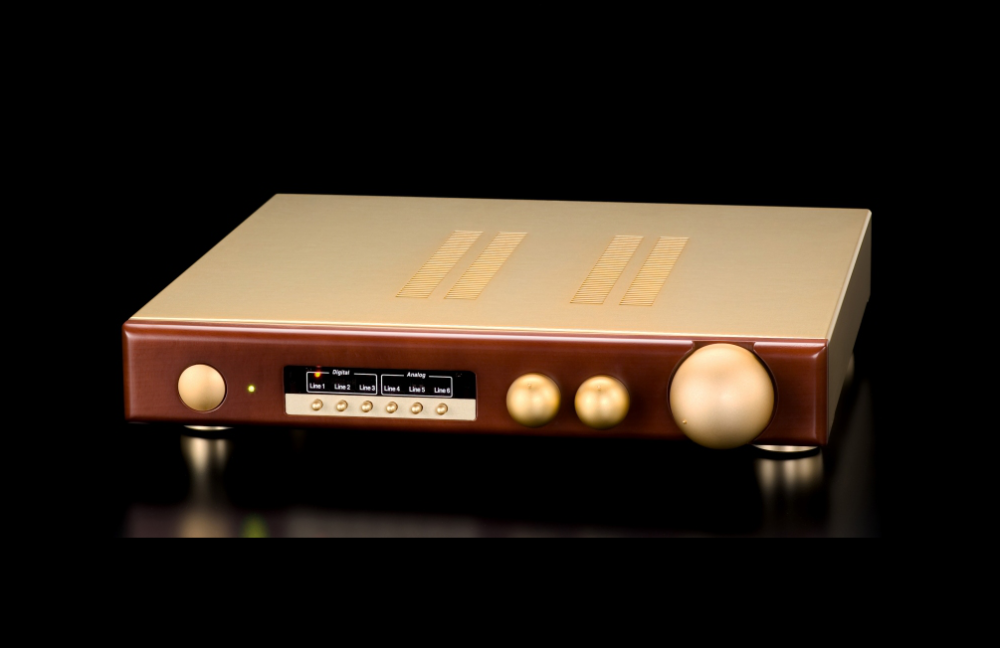

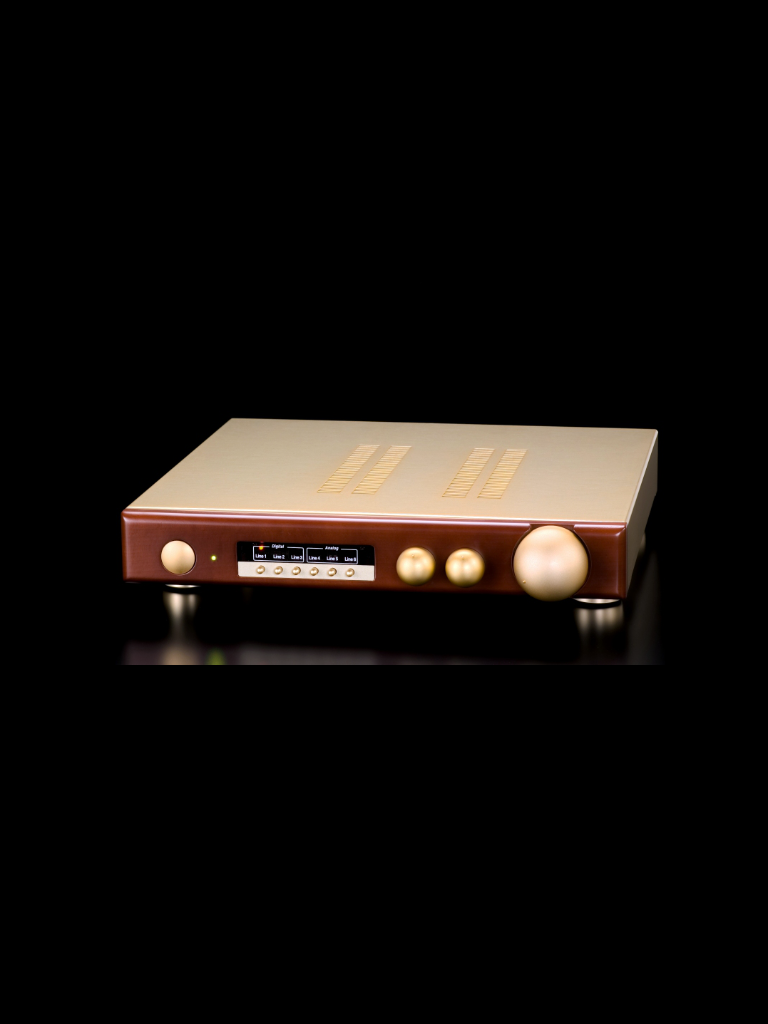

PR-X2 is designed to match with all WAVAC Audio Lab's power amplifiers.
PR-X2 is also developed for the use of other power amplifiers of different brands.

Cosmetically PR-X2 has a charming slim body to entice audiophile.

Volume knobs are large and easy to operate from the human engineering point of view. This is also a part of uniqueness in design to appeal the eye of end-user.

For the convenience of the user, it has remote function of six input selections plus on-off power switch of PR-X2.(remote does not work for balance controls)

PR-X2 has separate power supply so that the body is made very thin.

Tubes are covered by the shielded case which enhance the value of product.

Like wise, CPU is covered by gold plated case for shielding.

Input terminal	Digital level : 3ch Analogue level : 3ch
Input sensitivity	Digital level input : 2V Analogue level input:500mV
Input impedance	100K ohms
Input sensitivity	1.0Vrms
Output terminal	Pre-outx1ch : Rec-outx1ch
Output impedance	Pre-out:10k Rec-out47k ohm
Output terminal	Pre-outx1ch : Rec-outx1ch
Frequency range	20Hz-50KHz
S/N ratio	95dB
Power consumption	100 watts
Power supply	100,110,120,220,230,240 VAC 50-60Hz (selected when shipped)
External dimensions	420Wx400Dx85H(mm)
Weight	3kg (excluding power supply)
