Welcome to WAVAC Audio Lab .

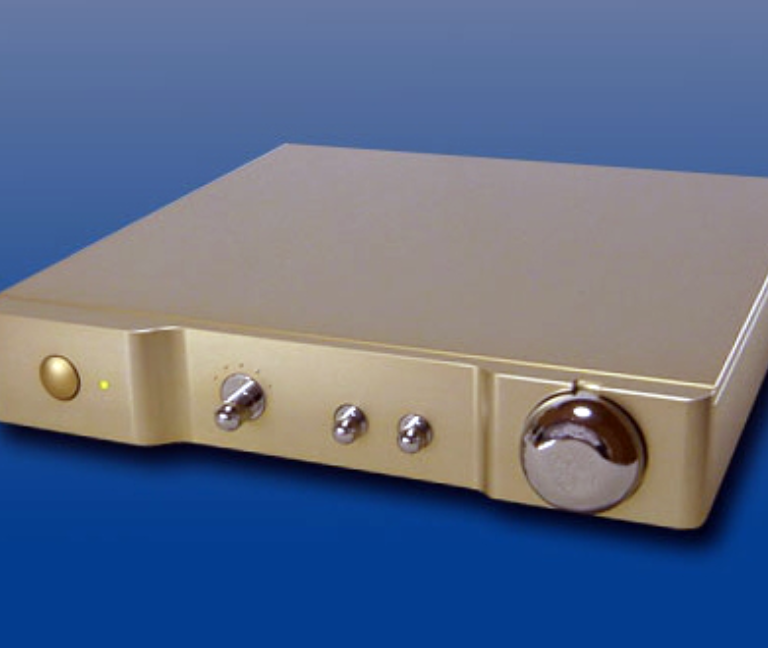

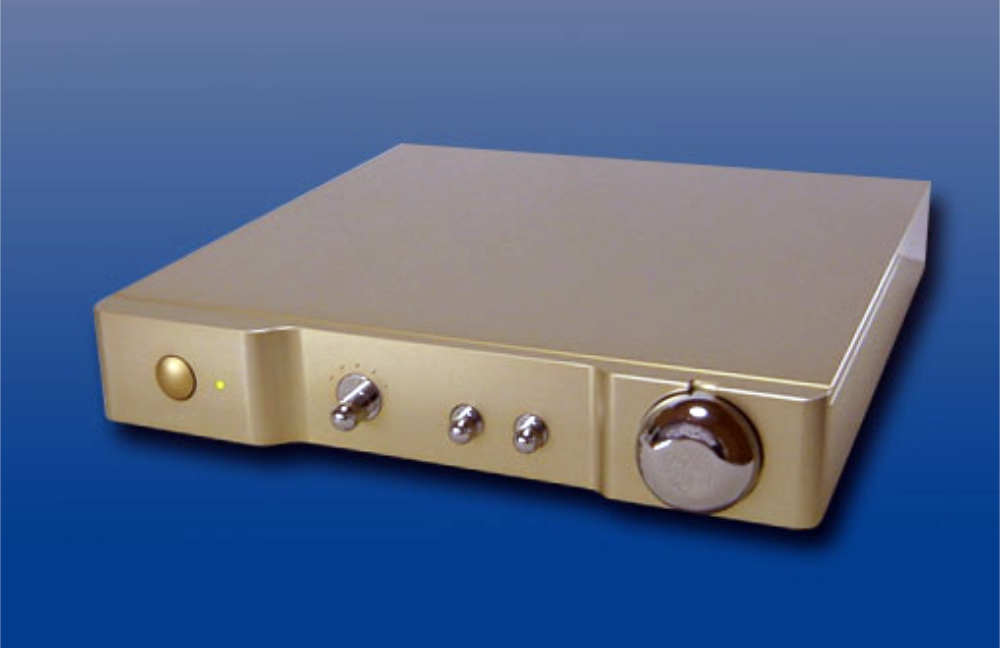

PR-Z1

Line Preamplifier

PR-Z1 feature

-Following the success of the WAVAC Audio Lab control amplifier PR-T1, the new PR-Z1 control amplifier continues in the pursuit of natural sound.

-PR-Z1 is a tube preamplifier which gives you enjoyment of music and luxurious feeling of controls.

-PR-Z1 uses low-noise and highly reliable tubes to achieve better quality and high efficiency.

-Separate power supply ensures the least magnetic noise form a power transformer. As a heater employs DC ignition system, which prevents hum noise from the heater.

-Shield case for tubes reduces the noises from outside.

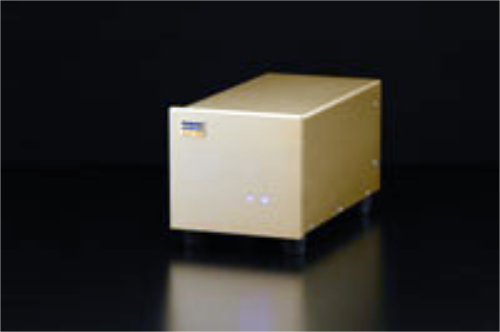

Power transformer box

TR-B1(z)

Product Specifications
Input

3RCA 2XLR(Option:5RCA Input OK)

Input impedance

RCA:75k ohm
XLR:75k ohm

Output

1RCA 1XLR
(Option:2RCA Output OK)

Output impedance

RCA:10k ohm
XLR:10k ohm

Distortion rate

under 0.5% / 5V Output

Frequency range

10Hz-80KHz

S/N ratio

>95dB

Power consumption

60W

Power supply

100,110,120,220,230,240

VAC

50-60Hz
(selected when shipped)

External dimensions

460Wx4830Dx95H(mm)

Weight

17kg
(excluding power supply)
